Reverse-chain E2E run report — S2B L1B → L1A → L0plus → Synthetic L0#
This run drives a Sentinel-2B L1B backwards through the exact inverse of the operational
L0→L1B radiometric chain to reconstruct L1A → L0plus (CCSDS-122 ISP) → Synthetic L0, then validates the
Synthetic L0 against the reference ESA L0 img. MTF-deconvolution is off, so PSF and noise are not
re-applied.
Input: S2B L1B for the 2024-04-08 PPB datatake (detector d05, all 13 bands) — ESA/Copernicus asset in
ipf/data-storeReconstructed reverse chain outputs (L1A → L0plus → Synthetic L0):
S02MSIL0__20240403T102415_0033_A045_TC42.zarr/S02MSIL0__20240403T102415_0033_A045_TC42_OC.zarr/S02MSIL1A_20240403T102415_0033_A045_T6DE.zarrNaming fallbacks (PSFD): [‘datetime’, ‘sat:relative_orbit’, ‘platform’]
Reverse L1B → L1A → L0plus → Synthetic L0 (full reverse chain) — 2024-04-08 S2B PPB#
The exact inverse of the full operational L0→L1B radiometric chain
(forward_radiometric_atbd.reverse_l1b_to_l0), materialised as the full EOPF EOPF product chain
(reverse-l1b → L1A raw counts; package-l0 → L0plus CCSDS ISP + ancillary → L0 decoded
img), validated against the S2B Synthetic L0/L1B pair for the 2024-04-08 PPB datatake (detector d05, all
13 bands). The Synthetic L1A is compared to the reference S2B L0 img directly — the archived EOPF Synthetic L0
stores decompressed img (verified on the TC7D granule), so no decoding is needed on the reference side;
our own codec is only round-tripped on the L0plus (asserted bit-exact). Alignment uses the exact
ADF_PRDLO begin_nb_lines_to_cut per band/detector (from the L1B metadata) + a small cross-correlation
refinement for the ~28-line legacy datation drift.
Synthetic L1A vs reference ESA L0 img — RMSE (DN), framing offset, line drift (drift 0 throughout):
band |
B01 |
B02 |
B03 |
B04 |
B05 |
B06 |
B07 |
B08 |
B8A |
B09 |
B10 |
B11 |
B12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
framing offset |
776 |
3176 |
3510 |
3815 |
1992 |
2075 |
2158 |
3342 |
2241 |
803 |
622 |
2065 |
2264 |
RMSE (DN) |
149.6 |
0.8 |
1.5 |
1.8 |
1.1 |
1.0 |
0.9 |
0.8 |
1.1 |
96.9 |
22.0 |
4.2 |
3.9 |
resolution |
60 m |
10 m |
10 m |
10 m |
20 m |
20 m |
20 m |
10 m |
20 m |
60 m |
60 m |
20 m |
20 m |
All ten 10 m + 20 m bands agree to ≤ ~4 DN with zero residual line-drift (the per-band framing offset is
exact). The three native-60 m bands (B01/B09/B10, italic) carry higher RMSE because the reverse
un-bin is a ×3 line replication — the sub-pixel detail the forward 60 m binning averaged away is
irrecoverable (their median offsets stay small: 0.7–5.9 %). Regenerate with
scripts/reverse_compare_figure.py.
Note
The “reference S2B L0” panels contain modified Copernicus Sentinel data 2024 (Sentinel-2B, 2024-04-08
datatake), shown as low-resolution demo previews for validation only. No raw product data is
redistributed here — input Synthetic L0/L1B products and operational GIPP/ADF are ESA/Copernicus assets kept in
the ipf/data-store, not in the repository.

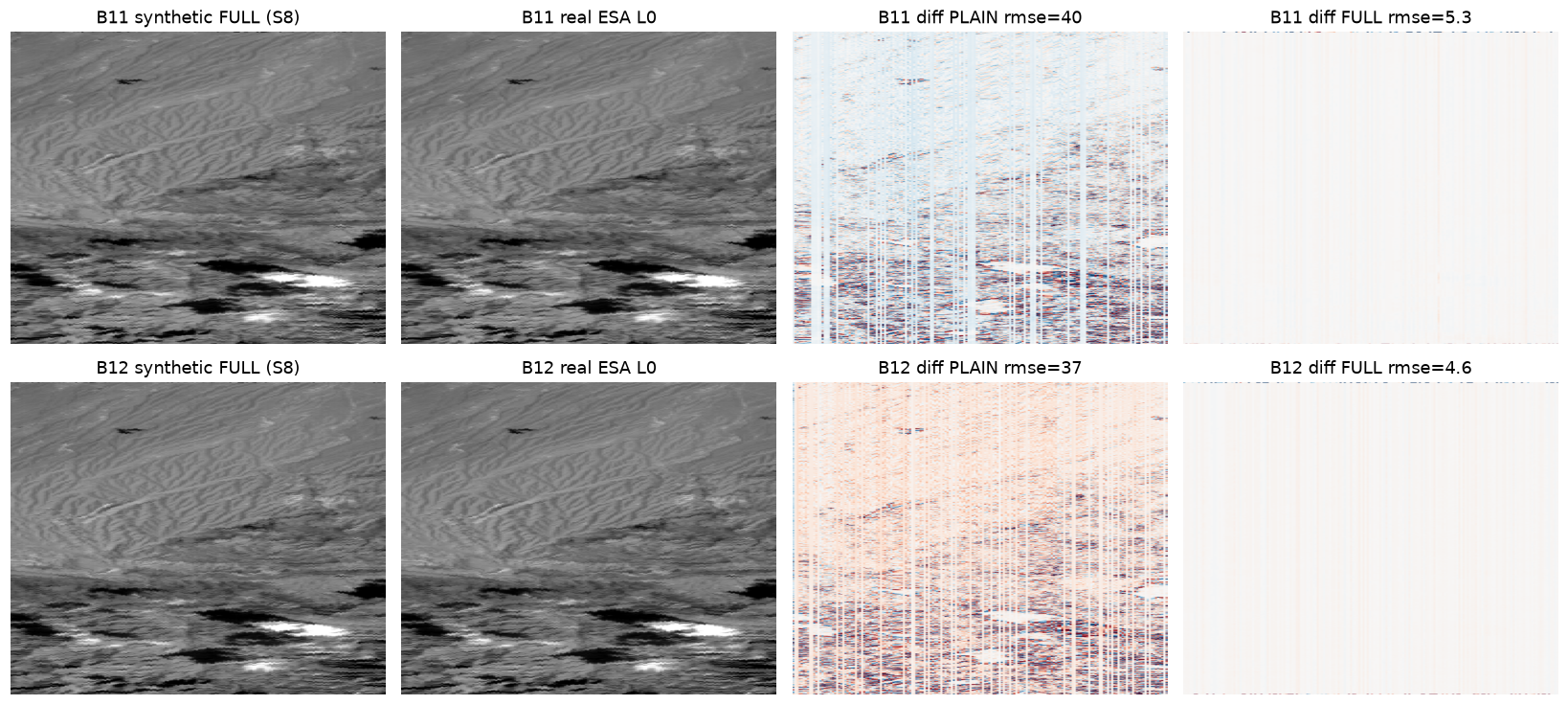

S8 SWIR re-arrangement is the decisive step for the SWIR bands: re-introducing the staggered detector readout (ADF_RSWIR per-column ±1-line shift map) drops the B11/B12 residual from ~50 DN of stripe texture to ~3 DN. Plain (no S8, diff rmse ~40) vs full chain (diff rmse ~5):

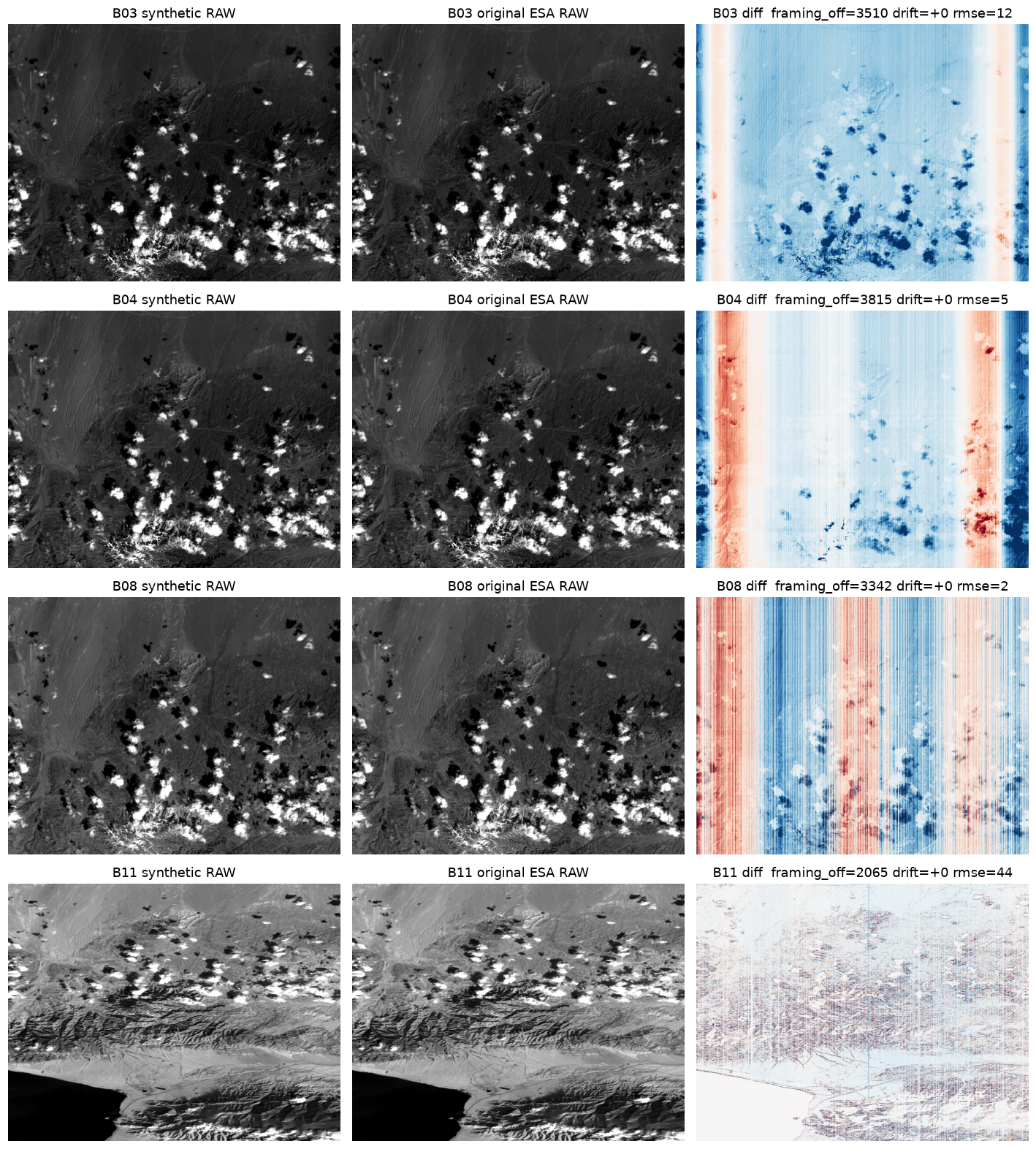

The L0 is ~5067 lines longer than L1B — the forward Framing (coarse-registration) step crops
begin/end_nb_lines_to_cut per (band, detector) to co-register all detectors to a common along-track
extent. Using those exact ADF_PRDLO offsets aligns the comparison with no hand-tuning (drift 0):
Steps applied, in reverse order: offset (R2PARA) → relative response (R2EQOG) → on-board eq (REOB2) →
dark → un-bin → SWIR re-arrangement (RSWIR) → defective (R2DEPI); crosstalk (RCRCO) added back
phase-level (≈0 for S2A/B). MTF restoration/deconvolution is off in the forward chain (L1B keeps
the instrument PSF), so PSF re-blur (S6) and noise (S13) are not re-applied — see
DPM parameters-data-list. Reproduce:
S2_PHASES=reverse-l1b S2_L1B_INPUT=<L1B.zarr> python scripts/run_pipeline.py; visual notebook
notebooks/reverse_l1b_compare.ipynb.
Compression + ground decode (bit-exact)#
band |
ratio |
packets |
bit-exact |
|---|---|---|---|
B01 |
3.3928 |
455 |
True |
B02 |
3.4384 |
5305 |
True |
B03 |
3.5504 |
5305 |
True |
B04 |
3.7229 |
5305 |
True |
B05 |
3.5679 |
1343 |
True |
B06 |
3.7023 |
1343 |
True |
B07 |
3.8643 |
1343 |
True |
B08 |
3.8885 |
5305 |
True |
B09 |
4.671 |
452 |
True |
B10 |
4.6589 |
452 |
True |
B11 |
3.4702 |
1343 |
True |
B12 |
3.365 |
1348 |
True |
B8A |
3.8949 |
1343 |
True |
L0plus codec round-trip (decode(L0plus)==L1A)#
Supporting check: decoding the L0plus CCSDS-122 stream returns the reverse chain L1A raw counts bit-for-bit (0 lines lost, RMSE 0.0), all 13 bands.
band |
bit-identical (kept) |
lines lost |
rmse |
|---|---|---|---|
B01 |
True |
0 |
0.0 |
B02 |
True |
0 |
0.0 |
B03 |
True |
0 |
0.0 |
B04 |
True |
0 |
0.0 |
B05 |
True |
0 |
0.0 |
B06 |
True |
0 |
0.0 |
B07 |
True |
0 |
0.0 |
B08 |
True |
0 |
0.0 |
B09 |
True |
0 |
0.0 |
B10 |
True |
0 |
0.0 |
B11 |
True |
0 |
0.0 |
B12 |
True |
0 |
0.0 |
B8A |
True |
0 |
0.0 |
Real-L0 ISP structural scan#
PSD L0 SAFE image-ISP .bin objects are HTTP 403 on GET (bucket policy) — image-packet accounting not possible; structural ISP validation done on SADATA packet streams
Real SADATA members tiling exactly: 2/68
member |
packets |
tiles |
seq continuous |
data-len min..max |
|---|---|---|---|---|
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48225_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
1 |
False |
True |
236..236 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11121_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
38 |
False |
False |
2..64576 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11113_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
10 |
False |
True |
236..63385 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11127_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
1 |
False |
True |
236..236 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S09123_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN |
3 |
False |
False |
1..6709 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S37105_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
97 |
False |
False |
1..64346 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11117_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
8 |
False |
True |
236..64423 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48226_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
5 |
False |
False |
10..22300 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/Inventory_Metadata.xml |
0 |
False |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11114_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
12 |
False |
True |
236..54505 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11109_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
7 |
False |
False |
1..54785 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48223_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
9 |
False |
True |
1..59354 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S38105_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
267 |
False |
False |
236..65125 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11115_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
12 |
False |
True |
36..61635 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11122_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
10 |
False |
False |
101..43037 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48230_2APS_20241218T042951_V20241218T034819_20241218T041652_A049565_WP_LN |
0 |
True |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48229_2APS_20241218T042951_V20241218T034819_20241218T041652_A049565_WP_LN |
0 |
False |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11125_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
14 |
False |
False |
1..61525 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11106_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
8 |
False |
False |
1..46801 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11126_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
11 |
False |
False |
1..58881 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11119_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
8 |
False |
False |
236..52737 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11108_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
38 |
False |
False |
1..55192 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11124_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
22 |
False |
False |
1..40449 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11116_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
12 |
False |
True |
1..54529 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11110_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
9 |
False |
True |
236..63233 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11105_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN |
11 |
False |
True |
236..65535 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48224_2APS_20241218T042954_V20241218T034819_20241218T041652_A049565_WP_LN |
2 |
False |
True |
236..25139 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11118_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
11 |
False |
True |
2..54081 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48232_2APS_20241218T042951_V20241218T034819_20241218T041652_A049565_WP_LN |
0 |
True |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11111_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
14 |
False |
False |
6..44653 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11120_2APS_20241218T042949_V20241218T034819_20241218T041652_A049565_WP_LN |
10 |
False |
True |
236..65288 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48227_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
3 |
False |
True |
236..37954 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48218_2APS_20241218T042950_V20241218T034819_20241218T041652_A049565_WP_LN |
9 |
False |
False |
54..61187 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S48231_2APS_20241218T042951_V20241218T034819_20241218T041652_A049565_WP_LN |
1 |
False |
True |
236..236 |
S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T042947_V20241218T034819_20241218T041652_A049565_WP_LN/S2A_OPER_AUX_S11112_2APS_20241218T042948_V20241218T034819_20241218T041652_A049565_WP_LN |
7 |
False |
False |
236..64849 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11106_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN |
2 |
False |
False |
407..60600 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11124_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
2 |
False |
True |
407..52613 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11126_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
7 |
False |
False |
1..52614 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S09123_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN |
2 |
False |
True |
257..407 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11113_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
True |
407..63869 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/Inventory_Metadata.xml |
0 |
False |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48223_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
2 |
False |
True |
407..53030 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48229_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
0 |
False |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48224_2APS_20241218T074257_V20241218T070943_20241218T072345_A049567_WP_LN |
3 |
False |
True |
407..4183 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11119_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
7 |
False |
True |
341..48078 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11120_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
True |
407..62483 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11115_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
7 |
False |
True |
1..46790 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11127_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
3 |
False |
True |
1..407 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48227_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
1 |
False |
True |
407..407 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48225_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
3 |
False |
True |
407..768 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48231_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
0 |
False |
True |
None..None |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11116_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
4 |
False |
True |
407..62528 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11111_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
11 |
False |
False |
1..50032 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11110_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
4 |
False |
True |
1..39962 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11117_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
4 |
False |
True |
407..61746 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48218_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
True |
149..33409 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11121_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
21 |
False |
True |
54..59607 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11105_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
True |
24..65536 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S48226_2APS_20241218T074254_V20241218T070943_20241218T072345_A049567_WP_LN |
3 |
False |
True |
407..6341 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11112_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
True |
407..36153 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S38105_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
31 |
False |
False |
1..61215 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11122_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
False |
257..59168 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11108_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN |
7 |
False |
True |
2..38582 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11114_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
8 |
False |
True |
407..57947 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S37105_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
47 |
False |
False |
1..62465 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11125_2APS_20241218T074253_V20241218T070943_20241218T072345_A049567_WP_LN |
8 |
False |
False |
1..52486 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11118_2APS_20241218T074252_V20241218T070943_20241218T072345_A049567_WP_LN |
8 |
False |
True |
6..65105 |
S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN.tar::S2A_OPER_AUX_SADATA_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN/S2A_OPER_AUX_S11109_2APS_20241218T074251_V20241218T070943_20241218T072345_A049567_WP_LN |
5 |
False |
False |
53..60591 |
Naming crosswalk (PSD ↔ PSFD)#
ours (PSFD file):
S02MSIL0__20240403T102415_0033_A045_TC42.zarrours (PSD datastrip id in metadata):
S2A_OPER_MSI_L0__DS_20240403T102415_A034803(pattern match: True)(PSD DS tar):
S2A_OPER_MSI_L0__DS_ATOS_20221111T083024_S20221111T082158_N04.00.tarreference datastrip ids: []
